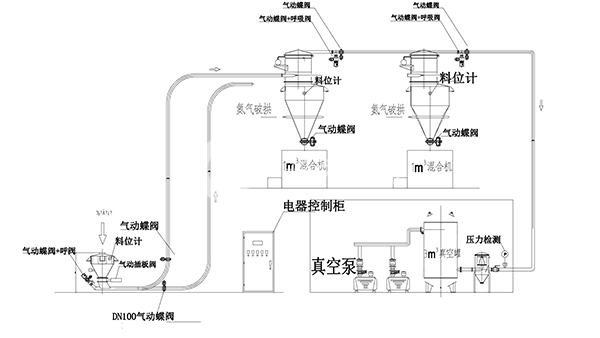

Technical description:
1. conveying materials: a mixture of creamer, sugar and coffee, with a mass ratio of 8:8:2 and a specific gravity of 0.6 ~ 0.6 after mixing.
2.The horizontal continuing distance is about 5m and the vertical height is about 6m.
3.The two conveying lines can be switched to two different mixers.
4.The parts in contact with materials are food grade SUS304.
5.All pipelines are food grade, and the inner wall is polished
6.The compressed air required by the system is 0.5MPa. (Note: the compressed air required for pulse meets the food requirements)
7.Equipment pipeline grounding.
System conveying capacity: 6 t / h.
